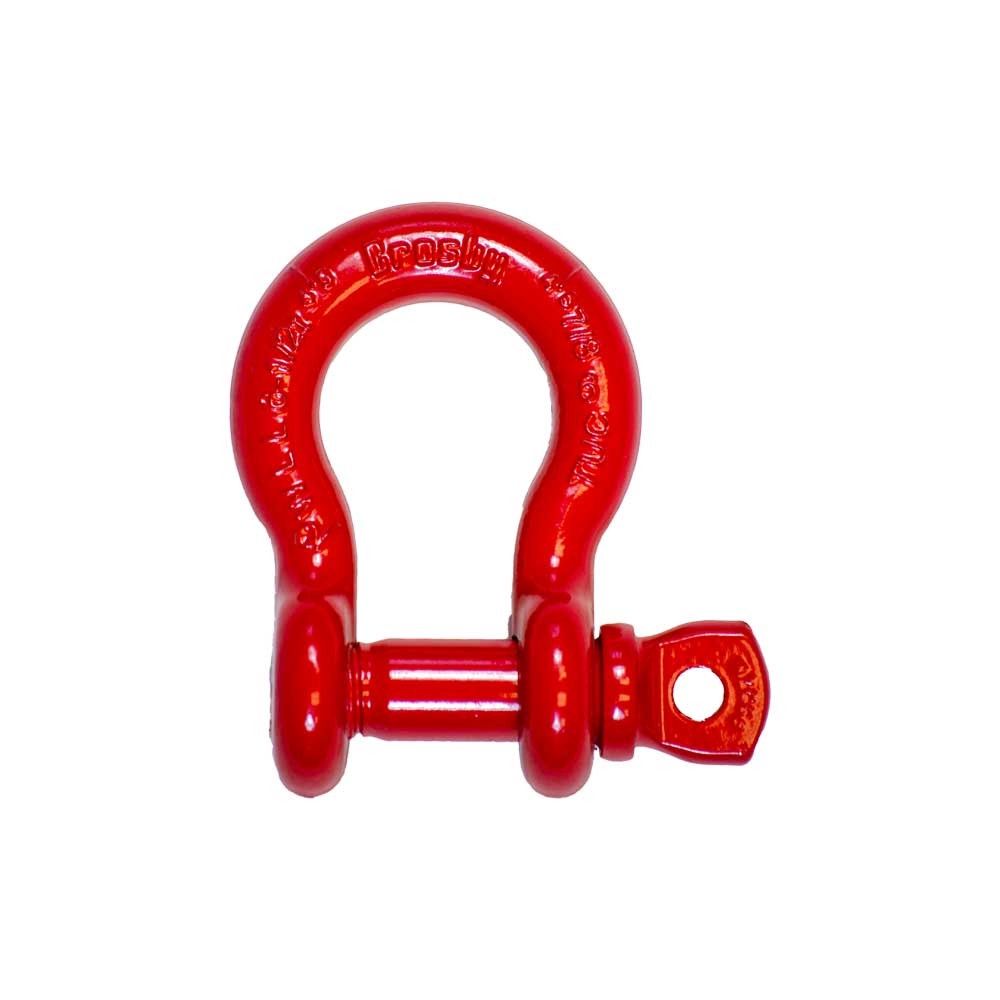

S-209 Crosby Maxtough Self Colored Screw Pin Anchor Shackle Grade 6

Product Description

• Capacities 1/3 thru 150 metric tons, grade 6.
• Working Load Limit and grade “6” permanently shown on every shackle.
• Forged – Quenched and Tempered, with alloy bolts.
• Hot Dip Self Colored or Self Colored.
• (85, 120, and 150 metric ton shackles are all hot dip Self Colored bows and the bolts are Dimetcoted® and painted red).
• Fatigue rated (1/3t - 55t).
• Shackles 25t and larger are RFID EQUIPPED.
• Approved for use at -40 degree C (-40 degree F) to 204 degree C (400 degree F).
• Meets or exceeds all requirements of ASME B30.26.
• Shackles 85 metric tons and larger are individually proof tested to 2.0 times the working load limit.
• Type Approval certification in accordance with ABS 2007 Steel Vessel Rules 1-11-17.7 and ABS Guide for Certification on Cranes available.
• Certificates available when requested at time of order and may include additional charges.
• 3.1 Certification as standard available for charpy and statistical proof test from 3.25t up to 25 tons to DNV2.7-1 and EN13889.
• Crosby 3.25t through 25t S209OC anchor shackles are type approved to DNV Certification
• Notes 2.7-1- Offshore Containers.
• These Crosby shackles are statistical proof and impact tested to 42 joules (31 ft-lbs.) min. avg. at -20 degree C (-4 degree F).
• The tests are conducted by Crosby and 3.1 test certification is available upon request.
• Refer to page 88 for Crosby COLD TUFF® shackles that meet the additional requirements of DNV rules for certification of lifting applications - Loose Gear.
• All other 2130 shackles can meet charpy requirements of 42 joules (31 ft-lbs) avg at -20 degree C (-4 degree F) when requested at time of order.
• Look for the Red Pin® . . . the mark of genuine Crosby quality.
